Ericsson Radio 4443 B1 B3 1800MHZ-2100MHZ 4T4R

Name: Ericsson Radio 4443 B1 B3 1800MHZ2100MHZ 4T4R
Brand: Ericsson
Price: 1 USD

China Ericsson Radio 4443 B1 B3 1800MHZ-2100MHZ 4T4R wholesale

Brand Name : Ericsson

Model Number : 4443 B1 B3

Certification : CE

Place of Origin : China

MOQ : 1 PC

Payment Terms : T/T,Western Union

Delivery Time : 1-3 Days

Brand : Ericsson

Model : 4443 B1 B3

MOQ : 1 PC

Condidtion : Second Hand

Lead Time : 1-3 Days

Warranty : 3 Months

Usage : Base Station

Type : RRU

Contact Now

Overview

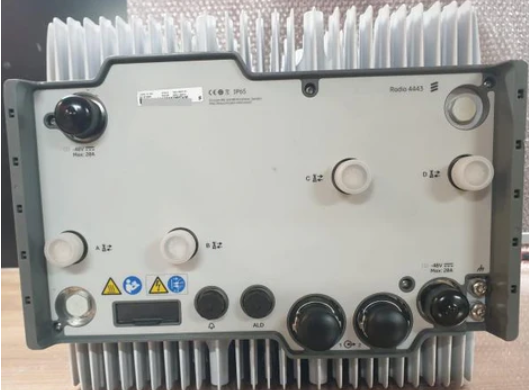

The Ericsson Radio 4443 B1 B3 is a remote radio unit. It features high power efficiency, compact design, and supports multi-carrier capabilities up to 6 carriers per port. The unit connects to a baseband unit via CPRI over optical fiber and can support AISG TMA and RET.

Key Specifications & Features:

Frequency Bands: LTE Bands 1 (2100 MHz) and 3 (1800 MHz).
Architecture: 4T4R (4 Transmit / 4 Receive) MIMO technology for enhanced throughput and reliability.
Multi-Standard Ready: Supports LTE, with potential for future 5G (NR) upgrades.
Power Output: Up to 4 x 80 W, with a configuration limit of max 4x60W per band, requiring the other band to be 4x20W or less.
Carrier Capacity: Supports a maximum of 6 carriers per port for both downlink (DL) and uplink (UL) in LTE.
Compact Design: Lightweight and energy-efficient, designed for flexible and efficient deployment.
Interface:
- Antenna Ports: 4 x 4-10 (f).
- CPRI: 2 x 2.5/4.9/9.8/10 Gbps (exchangeable SFP modules).
- External Device Support: Supports AISG TMA (Tower Mounted Amplifier) and RET (Remote Electrical Tilt).
Mechanical:
- Weight: Less than 37 kg.
- Volume: 36 liters, with dimensions 380 x 335 x 289 mm (HxWxD).

Product Tags:

Ericsson Radio 4443 4T4R transceiver

1800MHz-2100MHz optical module

Ericsson B1 B3 radio unit

Ericsson Radio 4443 B1 B3 1800MHZ-2100MHZ 4T4R Images
